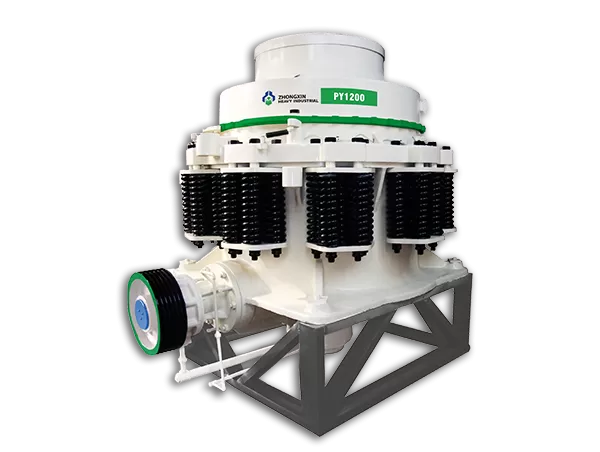

PY Series Spring Cone Crusher

Type:

Secondary Crushing

Capacity:

15-1000 TPH

Power:

30-280KW

Applications

Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway

Processed Materials

Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

+86 13676922906

sales@zxcrusher.com

Product Introduction

Spring cone crusher is suitable to crush all kinds of ores and rocks with medium hardness and above. It has features of reliable structure, efficiency, capacity,low operating cost,easy adjustment ,economical to use and so on.

Product Advantages

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Product Photos

Specification

Type	Dia. of Cone (mm)	Adjusting Range of Discharge Opening (mm)	Max Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PYB-600	600	12-25	65	15-25	30	5.5	1740×1225×1940
PYD-600	600	3-13	36	5-23	30	5.5	1740×1225×1940
PYB-900	900	15-50	115	50-90	55	10.18	1990×1640×2380
PYZ-900		5-20	60	20-65	55	10.19	1990×1640×2380
PYD-900		3-13	40	15-50	55	10.27	1990×1640×2380
PYB-1200	1200	20-50	145	110-200	110	24.7	2805×2300×2980
PYZ-1200		8-26	100	50-150	110	25	2805×2300×2980
PYD-1200		3-15	50	18-105	110	25.6	2805×2300×2980
PYB-1750	1750	25-60	215	280-480	155-160	50.6	3610×2950×4185
PYZ-1750		10-30	185	115-320	155-160	51	3610×2950×4185
PYD-1750		5-15	85	75-230	155-160	50.5	3610×2950×4185
PYB-2200	2200	30-60	300	590-1000	260-280	84	4790×3430×5080
PYZ-2200		10-30	235	200-580	260-280	85	4790×3430×5080
PYD-2200		5-16	110	120-370	260-280	85	4790×3430×4852
