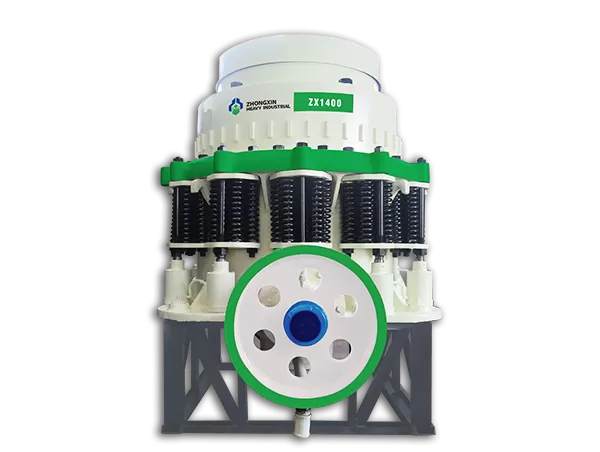

ZX Series Compound Cone Crusher

Type:

Secondary Crushing

Capacity:

105-725TPH

Power:

160-315KW

Applications

Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway

Processed Materials

Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

+86 13676922906

sales@zxcrusher.com

Product Introduction

ZX Series compound cone crusher has hydraulic clearing system,hydraulic opening adjustingfunction,easy for changing movable and fixed plate,dacreasing managemengt and maintence cost,It is widely used for medium and fine crushing of granite,basalt,disbase,cobble,cobblestone,iron,ore etc.

Product Advantages

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Product Photos

Specification

Model	Cavity Type	Max.Feeding Size(mm)	Discharging Opening Adjusted Scope(mm)	Capacity(t/h)	Motor Power(kw)	Weight(t)
ZX1950C-D	Coarse	350	60-110	330-725	315	45
ZX1950Z-D	Medium Coarse	180	19-40	230-330	315	45
ZX1650C₂-D	Coarse	300	35-65	280-610	250	35
ZX1650C-D	Coarse	260	30-60	265-580	250	35
ZX1650Z-D	Medium Coarse	240	25-60	240-550	250	35
ZX1400C-D	Coarse	235	30-60	210-530	220	25
ZX1400Z-D	Medium Coarse	215	25-50	200-500	220	25
ZX1400Z-X	Medium Coarse	180	22-45	180-475	220	25
ZX1200C-D	Coarse	180	19-50	110-250	132	16
ZX1300C-D	Coarse	200	16-51	135-350	160	21.5
ZX1300Z-D	Medium Coarse	150	13-25	105-180	160	21.5
