Product Introduction
PE Series Jaw Crusher is suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
Product Advantages
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.

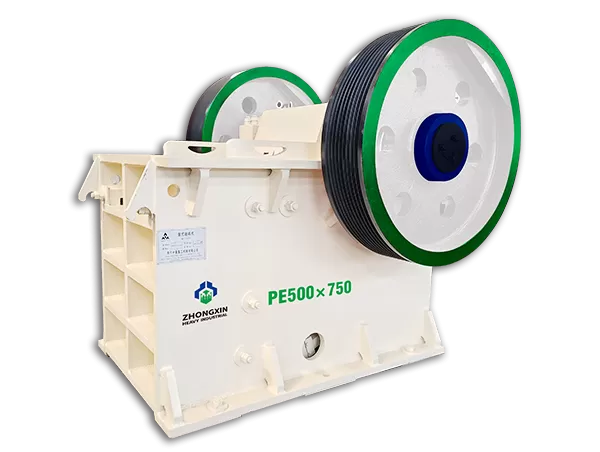

Product Photos
Specification
| Model | Feeding opening size(mm) | Max feeding size (mm) | Discharging opening size (mm) | Capacity(t/h) | Motor power (kW) | Weight (t) | Overall dimension (L×W×H) (mm) |
| PE250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1180×1087×1245 |
| PE400×600 | 400×600 | 340 | 40-100 | 16-60 | 30 | 6.65 | 1797×1716×1581 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-110 | 55 | 11.73 | 2119×1918×2046 |
| PE600×900 | 600×900 | 500 | 75-160 | 64-128 | 75 | 15.33 | 2309×2028×2368 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 51-208 | 110 | 27 | 2776×2585×2760 |
| PE870×1060 | 870×1060 | 740 | 170-270 | 180-360 | 110 | 31.22 | 2990×2416×2893 |
| PE900×1200 | 900×1200 | 780 | 95-225 | 350-450 | 132 | 40 | 3371×2750×3250 |
| PE1000×1200 | 1000×1200 | 850 | 195-280 | 280-550 | 132 | 41 | 3440×2750×3250 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 89.5 | 4930×3334×4057 |
| PE1300×1600 | 1300×1600 | 1100 | 130-280 | 800-950 | 315 | 102 | 4380×3397×4440 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 450-1000 | 355 | 124.4 | 5370×3853×4646 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 15 | 3.5 | 1252×1593×1025 |
| PEX-250×750 | 250×750 | 210 | 20-50 | 13-35 | 30 | 4.96 | 1435×1832×1715 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 30 | 6.5 | 1706×1964×1380 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 37 | 8.8 | 1700×2132×1450 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 25-95 | 75 | 12.6 | 2026×2320×1723 |
