PSG Series Compound Cone Crusher

Product Introduction

PSG Series Compound Cone Crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above.

Product Advantages

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

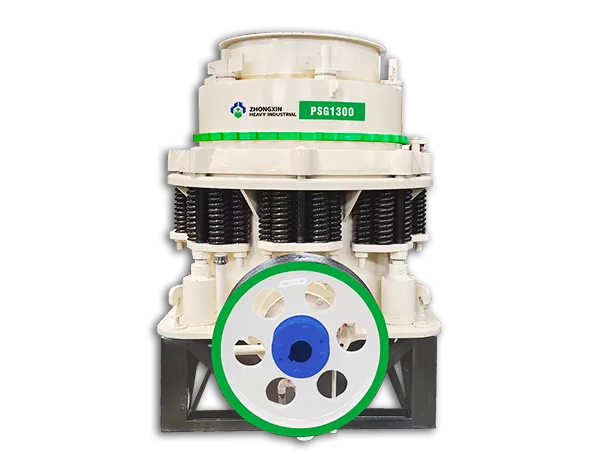

Product Photos

Specification

Type	Model	Cavity Type	Diameter of cone (mm)	Adjusting Range of Discharge Opening (mm)	Recommend feeding size when the minimum output size (mm)	Max feed size (mm)	Capacity (t/h)	Main Motor Power (kw)	Weight (kg)	Overall Dimension (L×W×H) (mm)
2’FT	PSGB- 0607	Standard fine	600	6-38	70	60	16-50	30	4500	2195×1158×1651
	PSGB- 0609	Standard medium		10-38	95	80	18-65
	PSGB- 0611	Standard coarse		13-38	110	90	22-70
	PSGD- 0603	Short head fine		3-13	35	30	9-35
	PSGD- 0605	Short head coarse		5-16	50	40	22-70
3’FT	PSGB- 0910	Standard fine	900	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB- 0917	Standard coarse		13-38	175	150	59-163
	PSGB- 0918	Standard super coarse		25-38	178	150	118-163
	PSGD-0904	Short head fine		3-13	41	35	27-90		10530
	PSGD-0906	Short head medium		3-16	76	65	27-100
	PSGD-0907	Short head coarse		6-19	102	85	59-129
4.25’FT	PSGB- 1313	Standard fine	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB- 1321	Standard medium		16-38	210	178	132-253
	PSGB- 1324	Standard coarse		19-51	241	205	172-349
	PSGB- 1325	Standard super coarse		25-51	259	220	236-358
	PSGD-1306	Short head fine		3-16	64	54	36-163		22590
	PSGD-1308	Short head medium		6-16	89	76	82-163
	PSGD-1310	Short head coarse		8-25	105	89	109-227
	PSGD-1313	Short head super coarse		16-25	133	113	118-236
5.5’FT	PSGB- 1620	Standard fine	1676	16-38	209	178	181-327	250	43270	3941×2954×3771
	PSGB- 1624	Standard medium		22-51	241	205	258-417
	PSGB- 1626	Standard coarse		25-64	269	228	299-635
	PSGB- 1636	Standard super coarse		38-64	368	313	431-630
	PSGD-1607	Short head fine		5-13	70	60	90-209		43870
	PSGD-1608	Short head medium		6-19	89	76	136-281
	PSGD-1613	short head coarse		10-25	133	113	190-336
	PSGD-1614	Short head super coarse		13-25	133	113	253-336
7’FT	PSGB- 2127	Standard fine	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
	PSGB- 2133	Standard medium		25-51	334	284	862-1424
	PSGB- 2136	Standard coarse		31-64	369	314	1125-1814
	PSGB- 2146	Standard super coarse		38-64	460	391	1252-1941
	PSGD-2110	Short head fine		5-16	105	89	218-463		89500
	PSGD-2113	Short head medium		10-19	133	113	404-580
	PSGD-2117	Short head coarse		13-25	178	151	517-680
	PSGD-2120	Short head super coarse		16-25	203	172	580-744
